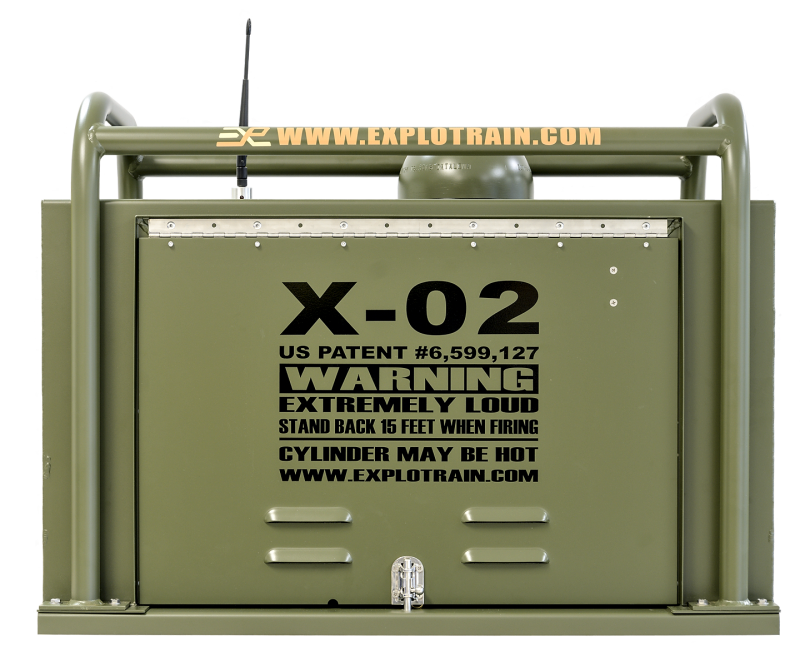

X-02 Mid-Size Battlefield Effects Enclosed Blast Simulator

NSN 6920016895927

Order Now From GSA Advantage

View Spec Sheet

Scroll down to check out the X-02 video.


The Explotrain® Model X-02™ IED Simulator provides very realistic and effective explosive battlefield effects to safely train our troops. Despite the loudness of the Model X-02™, it is safe to use near buildings, windows and personnel.

The X-02™ provides a rugged, fully enclosed and weatherproof method of simulating explosive battlefield effects. It is ideally suited for use in training scenarios where it will be subjected to rough handling and transport or exposed to extended periods of inclement weather.

The X-02™ offers portable maneuverability without sacrificing sound. At an adjustable 100-125dB, this simulator will shake the training foundations to create the psychological training scars necessary for effective retention.

Additionally, every Battlefield Effects simulator has an option for New Equipment Training (NET) to enable the user to maximize training effectiveness.

Available Remote Control options:

  • X-MIT – controls up to four X-O units with a 200m to 400+m range
  • X-LRT – controls up to ten X-O units with an 800+m range
  • X-ACT – Android tablet based application that controls up to sixteen X-O units with a 200m to 400+ range
  • X-CAP Receiver Kit – remotely triggers a single X-O unit using an X-CAP transmitter
  • Hardware Trigger – provides a wired connection to an external triggering device; eg. pressure pad, trip wire, etc.

SPECS (view spec sheet):

  • 152lbs
  • 24”H x 19” W x 34” L
  • 120-130 Decibel Blast
  • 150+ Shots per O2 Cylinder
  • 250+ Shots per Propane Cylinder
  • 10 Cents per Shot
  • Fires up to 60 Shots/Min
  • Automatic temperature compensation
  • Optional 800m wireless remote control
  • AA battery power supply
  • DOD 60559.9-STD and AFMAN 91-201 compliant

At Explotrain®, all of our products and IED Simulators are 100% made in America and they are made combat tough with our full product warranty. We know our freedoms depend on your success and we are available at anytime to provide any assistance we can, so you can keep your ranges operating smoothly.


Additional information

Optional Remote Controls

None, X-MIT, X-LRT, X-ACT, X-CAP Receiver Kit, Hardwire Trigger
