XP-357 Small Pneumatic Blast Simulator

NSN 6920016897666

Order Now From GSA Advantage

View Spec Sheet

Scroll down to check out the XP-357™ videos.


Proudly used by Raven’s Challenge since 2019.

“The addition of your product line has greatly enhanced our ability to provide “Real Time” penalty notification as well as your product providing a realistic X-ray profile with your cap systems”.

John V. Simpson

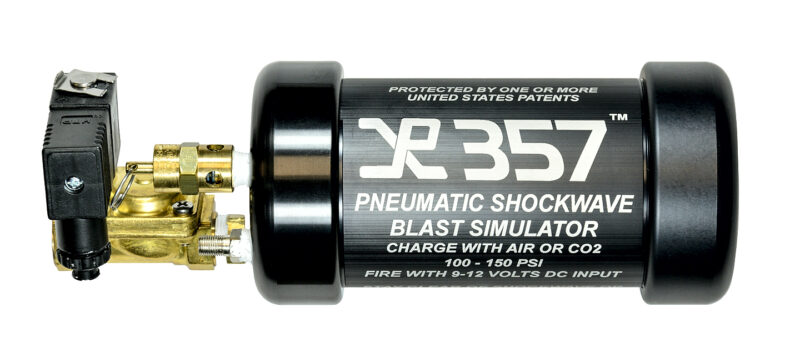

The Explotrain XP-357™ Pneumatic Shockwave Device provides a method of simulating explosive battlefield effects to safely train in scenarios where concealment is vital to react to hidden threats faced in theater. The XP-357™ produces a tuned PULSE™ shockwave effect which creates a unique tactile impulse or impact. The XP-357™’s small size allows concealment almost anywhere: under a workbench in an HME lab, beneath the seat of a vehicle, or inside simulated IEDs themselves such as a pipe bomb, artillery shell housing, or fuel jug. The simulator can be mounted to virtually any surface or in enclosed spaces where pyrotechnics would be unsafe or impractical. The XP-357™ is safe to hand-carry and hand-fire or discharge inside vehicles with personnel.  It requires no burst discs or containers and can be refilled and fired in seconds.  An optional FX Attachment mounts to the exhaust cap of the XP-357™ to allow the operator to use a wide variety of liquids or powders to create a realistic visual signature when needed.  Equipped with Key Fob Remote Control.

Additionally, every Battlefield Effects simulator has an option for New Equipment Training (NET) to enable the user to maximize training effectiveness.

SPECS (view spec sheet):

  • 3.5″ Diameter
  • 10″ Lenth
  • Pneumatic (Compressed air or CO2)
  • 110dB shockwave blast
  • Uses standard Schrader valve attachment
  • Non-Pyrotechnic
  • No burst discs
  • Standard 9-24V DC trigger signal operation
  • Includes wireless Key Fob Remote Control
  • Can be used with X-CAP Transmitters
  • Can be used with X-MIT and X-LRT Transmitters

At Explotrain® all of our products are 100% made in America and they are made combat tough with our full product warranty. We know our freedoms depend on your success and we are available at anytime to provide any assistance we can, so you can keep your ranges operating smoothly.




Additional information

Optional XP-357 Accessories:

None, FX Attachment, Hardwire Trigger Cable
