XP-870 Large Pneumatic Battlefield Effects Blast Simulator

NSN 6910016895994

Order Now From GSA Advantage

View Spec Sheet

Scroll down to check out the XP-870™ videos.


Proudly used by Raven’s Challenge since 2019.

“The addition of your product line has greatly enhanced our ability to provide “Real Time” penalty notification as well as your product providing a realistic X-ray profile with your cap systems”.

John V. Simpson

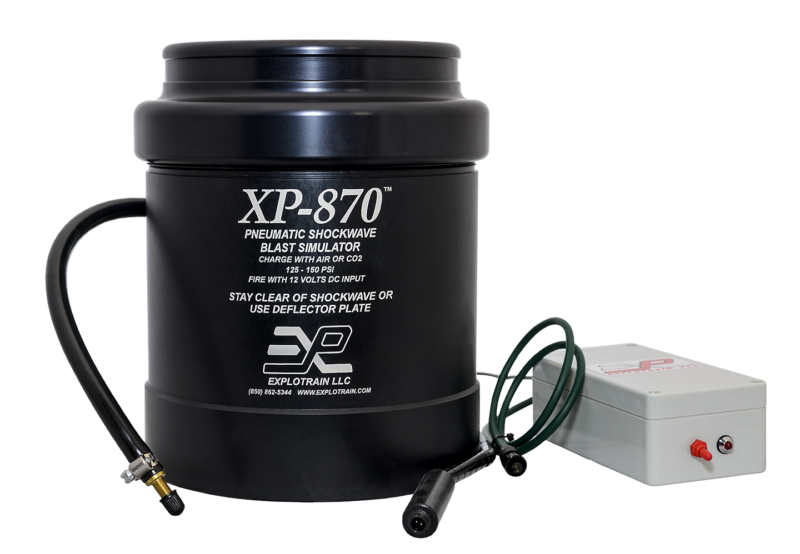

The XP-870™ is a pneumatic shockwave IED simulator without any attached gas bottles, hoses, wires or control modules. The XP-870™ produces a tuned shockwave and loud blast effect using compressed air or CO2 at 100–150 PSI. Unlike traditional pneumatic or CO2 powered IED simulators which rely on bursting discs or containers, the XP-870™ produces a tuned shockwave effect with no fragmentation hazard. Rapid repeat firings are possible with no need to “reload”, simply refill and re-fire in a matter of seconds.  Equipped with Key Fob Remote Control.

Additionally, the PULSE™ shockwave effect creates a unique tactile impulse to create additional levels of training. The XP-870™ can be concealed almost anywhere: under a workbench in an HME lab, and even submerged.

Not only is the XP-870™ able to be operated in the rain, but it is fully submersible. It can consistently propel water up to 50ft in height when submerged at 2ft.

Optional XP-870™ accessories include an FX Attachment, a Wall Mounting Bracket, and a Rubber Armored Housing.  The FX Attachment mounts to the top of the XP-870™ to allow the operator to use a wide variety of liquids or powders to create a realistic visual signature when needed.  The Wall Mounting Bracket allows the operator to mount the entire assembly onto a sturdy structure for added concealment options.  The bracket assembly utilizes a reservoir similar to the FX attachment for the addition of liquids or powders to create a visual signature for added realism.  The Rubber Armored Housing provides an easy carry handle and adds extreme armored protection when needed.

Additionally, every Battlefield Effects simulator has an option for New Equipment Training (NET) to enable the user to maximize training effectiveness.

SPECS (view spec sheet):

  • 8.5″ Diameter
  • 12.75″ Length
  • Pneumatic (Compressed air or CO2)
  • 116dB shockwave blast
  • Uses standard Schrader valve attachment
  • Non-Pyrotechnic
  • No burst discs
  • Standard 9-24V DC trigger signal operation
  • Includes wireless Key Fob Remote Control
  • Can be used with X-CAP Transmitters

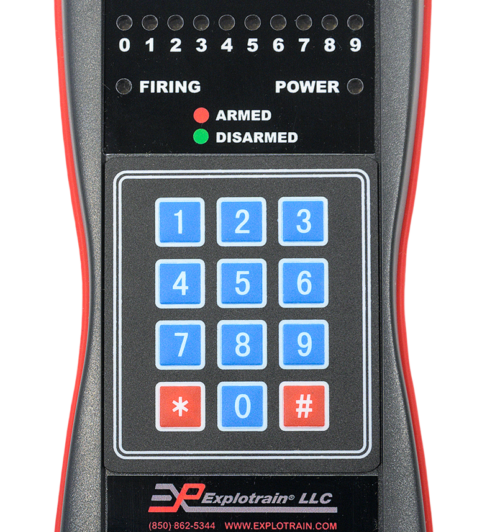

  • Can be used with X-MIT and X-LRT Transmitters

At Explotrain® all of our products are 100% made in America and they are made combat tough with our full product warranty. We know our freedoms depend on your success and we are available at anytime to provide any assistance we can, so you can keep your ranges operating smoothly.

Additional information

Optional XP-870™ Accessories

None, FX Attachment, Wall Mounting Bracket, Rubber Armored Housing, Hardwire Trigger Cable
