X-PANDR Pneumatic Battlefield Effects Simulator

NSN 6910016896936

Order Now From GSA Advantage

View Spec Sheet

Scroll down to check out the X-PANDR™ video.

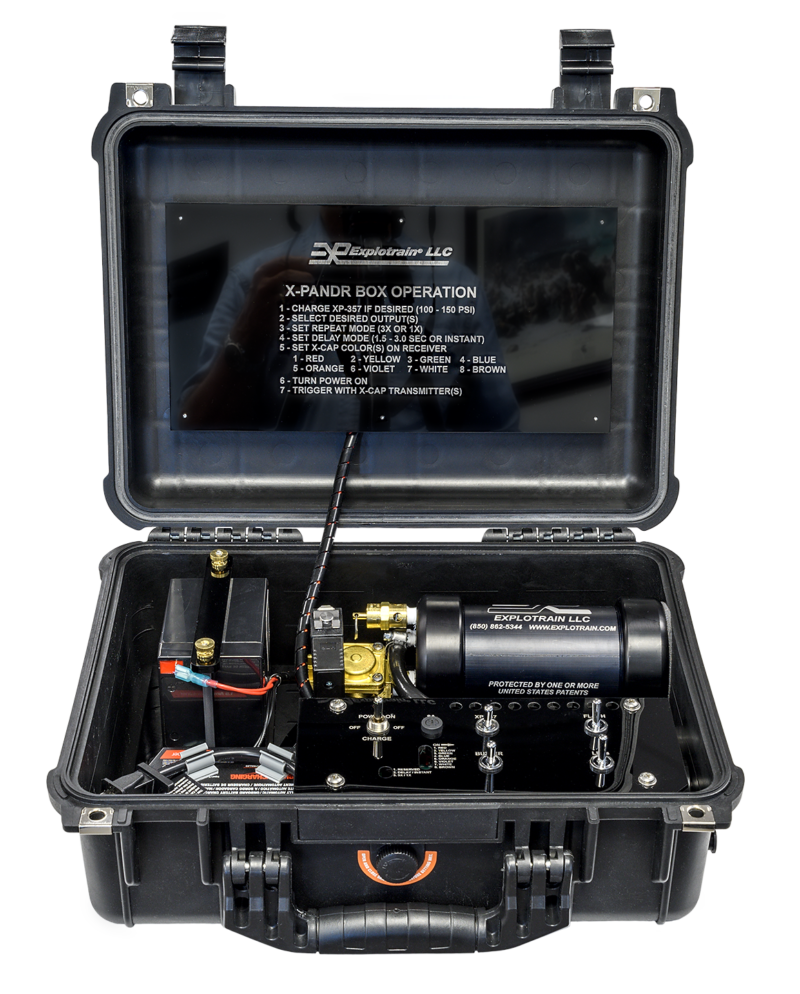

The X-PANDR ™ Box is designed to provide the IED, EOD or SWAT operator or instructor multiple options when simulating or indicating the effects of triggering an explosive device. An operator can choose any combination of outputs to indicate the triggering of a device. These user-selectable outputs allow trainers, instructors and operators to use the X-PANDR™ Box in a classroom setting as an instructional aid one moment and as a tactical effects simulator in a field training exercise the next. The X-PANDR™ Box can monitor and identify up to eight training devices or triggers at one time providing ultimate instructional or complex tactical support.

The X-PANDR™ can be used as a standalone device, or used to trigger other blast simulators. It incorporates the XP-357™ pneumatic simulator, LEDs which produce a 15k lumen flash, 90dB buzzer; simulating a flash bang, and the ability to hand-carry the device or place under a desk gives it the ability to be used safely in any training environment.

The XP-357™ Pneumatic Shockwave Device produces a tuned Shockwave and loud blast effect using compressed air or CO2 at 100–150 PSI. Unlike traditional pneumatic or CO2 powered IED Simulators that rely on bursting discs or containers, the XP Series produces the tuned shockwave effect with no fragmentation hazard. Rapid repeat firings are possible with no need to “reload” the XP-357™ non-pyrotechnic IED simulator, simply refill and re-fire in a matter of seconds.

Additionally, every Battlefield Effects simulator has an option for New Equipment Training (NET) to enable the user to maximize training effectiveness.

SPECS (view spec sheet):

  • 18″L-11″W-7″H

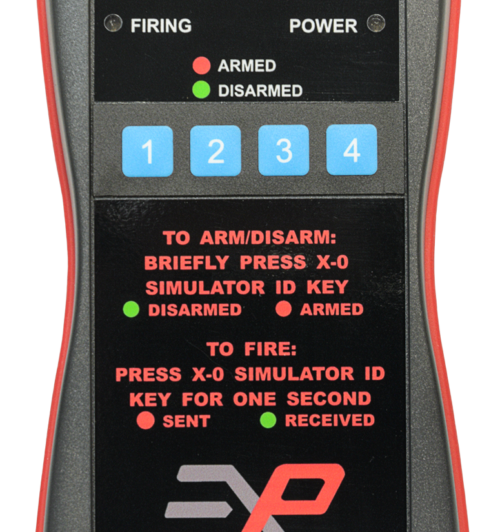

  • Includes two X-CAP blasting cap transmitters (choose color above)
  • Rechargeable battery power supply
  • 90dB Buzzer
  • Uses compressed air or CO2 (100-150PSI)
  • Produces 15,000 lumen LED flash
  • Uses standard tire inflator Schrader valve attachment
  • No burst discs; can be automatically refilled and re-fired in seconds
  • Non-pyrotechnic
  • DOD 60559.9 STD and AFMAN 91-201 compliant


At Explotrain® all of our products are 100% made in America and they are made combat tough with our full product warranty. We know our freedoms depend on your success and we are available at anytime to provide any assistance we can, so you can keep your ranges operating smoothly.


Additional information

X-CAP Transmitter #1 Color

Any Color, Red, Yellow, Green, Blue, Orange, Purple, White, Brown

X-CAP Transmitter #2 Color

Any Color, Red, Yellow, Green, Blue, Orange, Purple, White, Brown
