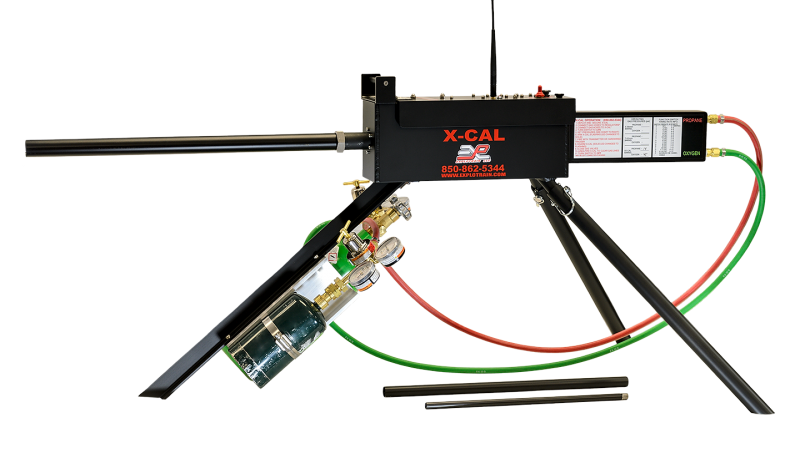

X-CAL Battlefield Effects Machine Gun Simulator

NSN 6920016897644

Order Now From GSA Advantage

View Spec Sheet

Scroll down to check out the X-CAL™ videos.


The X-CAL™ machine gun is the only weatherproof (not just weather-resistant) simulator available on the market today. The versatility of either mounted or man-carried, the X-CAL™ does not sacrifice any safety for sound. Standard with every simulator is the ability to choose between different gun platforms; from an M2A1, M107, AK47, M240B, or an M4 and M16. The X-CAL™ has the ability to reliably fire 5-10 shots per second utilizing Cold Fire™ technology, as well as a single-fire sniper mode. The X-CAL™ will also report correct IR readings for any ISR assets being used during a training cycle in addition to realistic muzzle flash for night Ops. The X-CAL™ also has the longest remote capability at 800m. So from convoy training to complex attack scenarios, the X-CAL™ is the most versatile machine gun simulator available.

Additionally, every Battlefield Effects simulator has an option for New Equipment Training (NET) to enable the user to maximize training effectiveness.

Available Remote Control options:

  • X-MIT – controls up to four X-O units with a 200m to 400+m range
  • X-LRT – controls up to ten X-O units with an 800+m range
  • X-ACT – Android tablet based application that controls up to sixteen X-O units with a 200m to 400+ range
  • X-CAP Receiver Kit – remotely triggers a single X-O unit using an X-CAP transmitter
  • Hardware Trigger Cable – provides a wired connection to an external triggering device; eg. pressure pad, trip wire, etc.

SPECS (view spec sheet):

  • 16lbs
  • 33″ main body W/O Barrel attachment
  • 5.56, 7.62, and .50 Caliber barrel attachments included
  • Blast sound levels vary with the specific barrel attached:
    • 50 cal – 153+dB Peak
    • 7.62 – 149+dB Peak
    • 5.56 – 144+dB Peak
  • Optional 800m remote control transmitter
  • Hand-carried configurations available
  • Single-shot sniper fire simulation
  • Cold-Fire technology for reliable operation
  • AA battery power supply
  • Weatherproof
  • Propane-oxygen operation
  • Realistic heat signature for ISR operations
  • Marine-grade option available for saltwater applications


At Explotrain®, all of our products and IED Simulators are 100% made in America and they are made combat tough with our full product warranty. We know our freedoms depend on your success and we are available at anytime to provide any assistance we can, so you can keep your ranges operating smoothly.









Additional information


Standard, Marine Grade

Optional Remote Controls

None, X-MIT, X-LRT, X-ACT, X-CAP Receiver Kit, Hardwire Trigger Cable
